EDX : Energy Dispersive X-Ray Fluorescence Spectrometer must be robust, user-friendly and flexible to analyze solid , powder , liquid samples and measurement of film thickness as well composition . The spectrometer should be able to do the following general analysis.

• The Spectrometer should be able to do the following general analysis. In built calibration of RoHS(Restriction of hazardous Substances)/ELV(End of life Vehicle). Halogen and Antimony Screening.
• Thin film analysis/ plating thickness measurement as well as composition for semiconductors, discs liquid crystal & solar cells.
• Ferrous/ non ferrous metals component analysis and impurity analysis of raw materials alloys solder, and precious metals
• Analysis of Ceramics, Cement, glass, bricks, clay.
• Analysis of Sulphur in oil additive elements and mixed element in lubricants oil.

Bruker Magellan is a spark emission spectrometer with vacuum optic. It is PMT-based performance supported by a digital plasma generator for unlimited time resolution including Single Spark Evaluation. This system is designed for the determination of element concentrations in Ferrous Metals, Non-Ferrous Metals and Alloys. The standardization of spectrometer done on daily basis by using certified reference material. It is 7 base chemical testing equipment. 7 bases are Fe, Cu, Ni, Zn, Ti, Al and Co.

Capabilities:

• Work with Analysis software with integrated single spark evaluation.
• Material quality monitoring with dynamic internal and external limit check.
• Chemical composition analysis of unknown samples.
• Material grade identification.
• Chemical analysis of small samples and thin wires

This system is designed for the determination of element concentrations in Ferrous Metals, Non-Ferrous Metals and Alloys. The standardization of spectrometer done on daily basis by using certified reference material. It is 3 base chemical testing equipment. 3 bases are Fe, Cu and Al.

Capabilities:

• Work with Analysis software with integrated single spark evaluation.
• Material quality monitoring with dynamic internal and external limit check.
• Chemical composition analysis of unknown samples.
• Material grade identification.
• Chemical analysis of small samples and thin wires

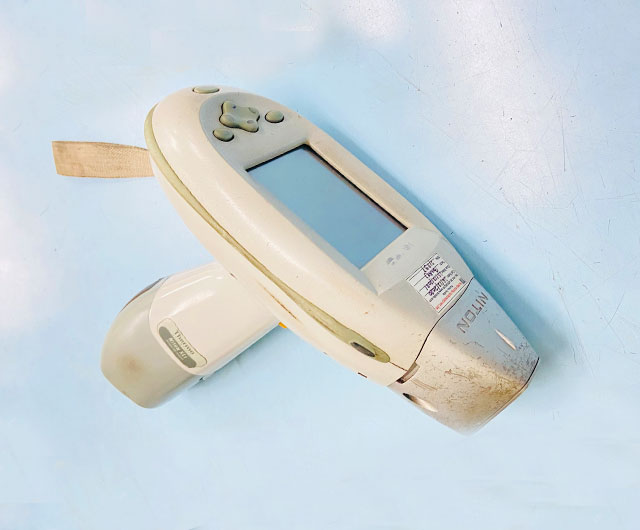

XRF (X-ray Fluorescence) Spectrometer is a non-destructive analytical technique used to determine the elemental composition of materials. XRF Spectrometer determine the chemistry of a sample by measuring the fluorescent X-ray emitted from a sample when it is excited by a primary X-ray source. XRF spectroscopy is a technology for Metal Sorting and Material Identification.

Capabilities:

• Segregation of different materials
• Chemical composition identification of unknown samples.
• Material grade identification.

The salt spray test is an accelerated corrosion test used to measure the comparative corrosion resistance of materials exposed to a salt spray or salt fog at high temperature. This corrosion test is intended to provide corrosion resistance information on metals and coated metals. With visual inspection following this test the suitability of coatings and metals to resist corrosion or exposure to marine environments can be determined.

It is performed on the following types of finishes on ferrous products:

• Metallic coatings such as zinc, cadmium, copper, nickel and chromium.
• Non-metallic coating such as oxide/conversion coatings with/without supplemental organic coating.

Salt Spray Test to check the Corrosion has following standardized test methods:

• Neutral salt spray Tests uses chloride as the corrosive ion. The test is suitable for organic coatings, chromate conversion coatings, anodic oxide coatings on aluminium.
• AASS: Acidic acid salt spray test uses chloride and free acid as the corrosive ions. This test is useful for testing decorative coatings of copper + nickel + chromium or nickel + chromium and anodic coatings on aluminium.
• CASS: Copper accelerated Acetic Acid Salt Spray Test uses chloride, free acid and copper as the corrosive ions. This test is useful for testing decorative coatings of coper + nickel + chromium or nickel + chromium and anodic coatings on aluminium.
