Precision Manufacturing

Institute have the latest, state of the art machining facilities like CNC Turn-O-Mill Machining, CNC EDM Machining, CNC VMC and various other conventional machines like Vertical Milling Machine, Lathe Machine, Surface Grinder, Cylindrical Grinder, Shaper Machine, Radial Drill Machine.

CNC 5 Axis EDM Wire Cut Machine

S.No.	Technical Specifications	Dimensions	Unit
1	X, Y Travel	600 X 400	mm
2	U, V Travel	120 X 120	mm
3	Z Travel	400	mm
4	Maximum Workpiece Dimension	1060 x 750 x 400	mm
5	Maximum Workpiece Weight	1500	Kg
6	Maximum Taper Angle	±30°/87 , ±27°/100 , ±45°/60	mm
7	Standard Wire Diameter	0.1-0.33	mm
8	Minimum Threading Hole Diameter	0.5	mm
9	Accuracy	±5	µm
10	3D Set Up Touch probe Make: Renishaw

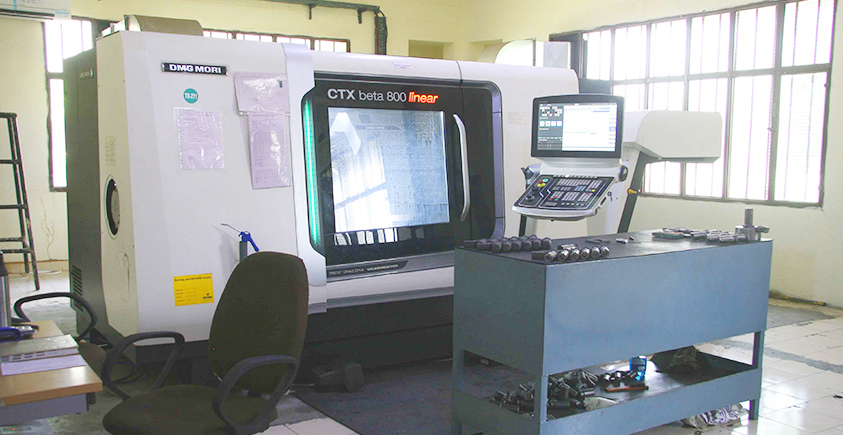

CNC 4 Axis Turn-O-Mill Machine

S.No.	Technical Specifications	Dimensions
1	X-axis Travel	300 mm
2	Y-Axis Travel	±60 mm
3	Z-axis Travel	800 mm
4	Max. Turning Diameter	410 mm
5	Max. Turning Length	650 mm

CNC 3 Axis Turn-O-Mill Machine

S.No.	Technical Specifications	Dimensions
1	Max. Turning Diameter	340 mm
2	Max. Turning Length	500 mm

CNC 3 Axis Vertical Milling Center (VMC)

S.No.	Technical Specifications	Dimensions
1	X-axis Travel	600 mm
2	Z-axis Travel	450 mm
3	Y-axis Travel	500 mm

Spark EDM Machine

S.No.	Technical Specifications	Dimensions
1	X-axis Travel	300 mm
2	Z-axis Travel	200 mm
3	Y-axis Travel	200 mm

Cylindrical Grinder

S.No.	Technical Specifications	Dimensions
1	Diameter	200 mm Max.
2	Length	750 mm Max.

Surface Grinder

S.No.	Technical Specifications	Dimensions
1	Longitudinal Travel	600 mm
2	Cross Travel	200 mm
3	Vertical Travel	250 mm

Radial Drill Machine

S.No.	Technical Specifications	Dimensions
1	Length	720 mm
2	Width	550 mm
3	Vertical Travel	700 mm
4	Horizontal Travel	1000 mm

Lathe Machine

S.No.	Technical Specifications	Dimensions
1	Diameter	600 mm Max.
2	Length	1900 mm Max.

S.No.	Technical Specifications	Dimensions
1	Diameter	400 mm Max.
2	Length	1000 mm Max.

Shaper Machine

S.No.	Technical Specifications	Dimensions
1	Length	600 mm
2	Width	380 mm

Vertical Milling Machine

S.No.	Technical Specifications	Dimensions
1	Longitudinal Travel	760 mm
2	Cross Travel	230 mm
3	Vertical Travel	400 mm

Bench Grinder

Special Automatic Turning Machine

S.No.	Technical Specifications	Dimensions
1	Diameter	42mm Max.
2	Length	60mm Max.

Centerless Grinder

Testing & Evaluation

Chemical Composition Analysis
Metallurgical Testing
Mechanical Testing Lab
Non Destructive Testing (NDT)
Failure Analysis
